Double Head Epson I3200 Inkjet Printer Board Better Printer For UV Flatbed Printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U2FMB_V102,EFHB_V112 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 182mm*112mm | Head Board Specifications | 198mm*132mm |
|---|---|---|---|
| Colour | Blue | Application Nozzle Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 |
| Model | I3200 Printhead | Use For | Industry Inkjet Printer |
| Board Type | Inkjet Printer Double-head Control Board | After Warranty Service | Warranty Is For 12 Months |
| High Light | I3200 printer control system,I3200 Fiber Optic Circuit Board,I3200 Inkjet Printer Control System |
||
Product Description
I3200 Fiber 2.0 Main board Headboard Inkjet Print Control System
USB2.0 optical fiber inkjet printing control system, For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.
| Name | USB2.0 optical fiber inkjet Printer board | Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| Nozzle model | Epson I3200 | Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. | Board support | Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head |
| Data interface | 1.25G optical fiber is connected to the spray car board USB2.0 cable to connect to the computer |
Trolley speed | 1.2M/S |
| Color channel | 8 channels/8 colors | Effective print width of print head | 1.33 inches |
| Number of nozzles | 3200 | RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc. |
| Ignition frequency | 30KHz | Application field | Advertising photo printing, UV coil, textile printing and other industries |
Application machine:
White ink scald transfer machine,Photo machine,UV flatbed machine,Double-station direct printing machine, etc.
The heat transfer machine is suitable for all kinds of fabrics, Clothing cutting piece, seamless underwear, knitted underwear, swimwear, hats, gloves, umbrellas, etc.
The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.
Application scenario:
Schoolbag hot Painting Hat hot Painting Signage color printing Phone case color printing
Outdoor advertising printing Sliding door color printing Metal box color printing Clothing hot painting
Product Show:

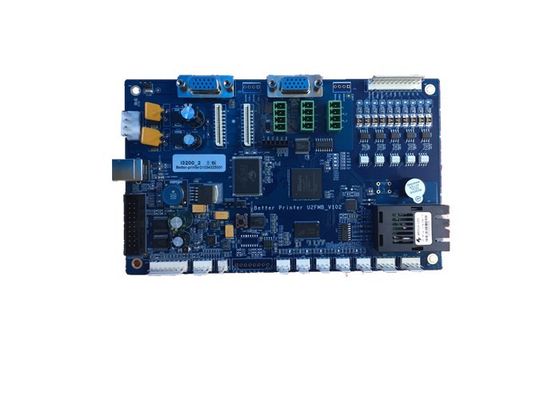

Main board

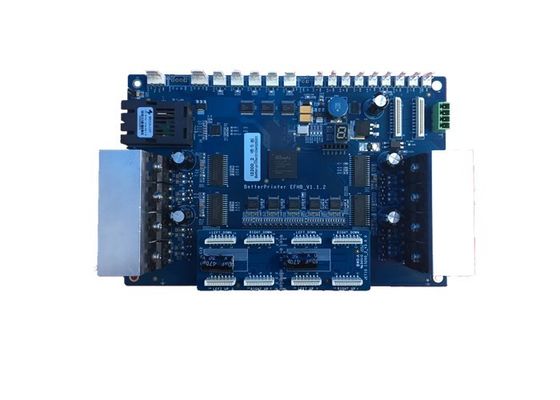

Head board

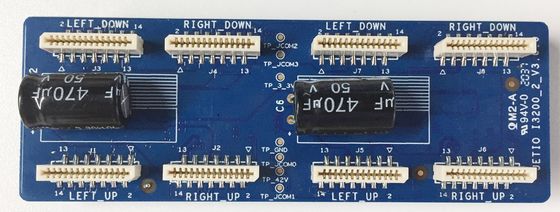

Sprinkler head Adapter board

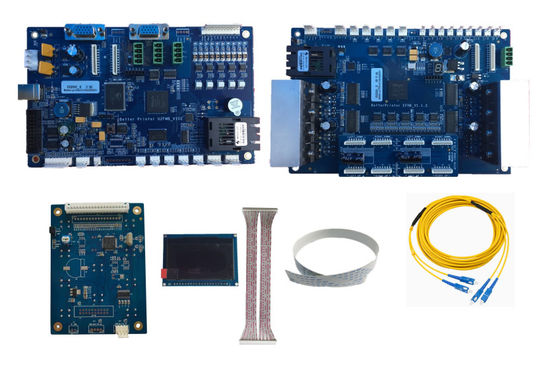

Inkjet Printher Control Board I3200 suite
About us:
1.Professional after-sales technical service team to ensure that your products are of better quality.
2.All products we sell have been passed strict inspection before shipment.
3.Our products cover all kinds of industrial inkjet printer circuit boards and technical services.
4.If you have any questions both before ordering and after ordering,please feel free to contact us.
5.After you received our products, if you have any problems or questions,please contact us before leave the negative feedback for us .We will try to solve any problem for you !
Cautions:
1.Warranty method of the product: the warranty period of the board card is 1 year, and the damage of the board card caused by wrong operation and human factors is not covered by the warranty.
2.Other responsibilities: Cooperate with customers in technical guidance and product maintenance. Customers shall keep confidential the product information, materials and manuals of the Company, and both parties shall be obliged to keep confidential the business cooperation information of both parties.
