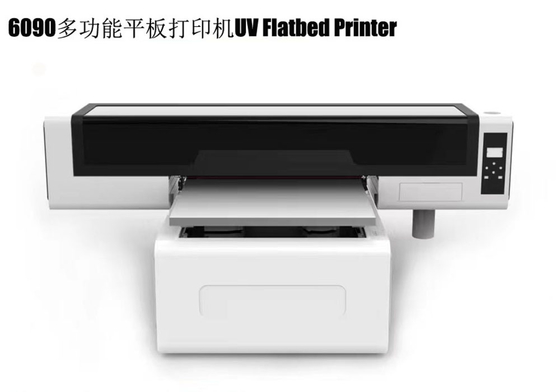

6090 Uv Flatbed Printer Crystal Label Metal Printing Tx800 Print Head Acrylic Clothes Advertising Inkjet Printer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | UV Flatbed Printer | Print Speed | 6 Pass 2m2/H |
---|---|---|---|
Inks Color | CMYK+W+V+G | Interface | USB2.0/3.0 |
Max Print Size | 900mm * 600mm | Printer Size L/W/H | 1686*1482*780mm |
G.W&N.W | 185kg&150kg | RIP Software | Maintop/Riprint/Photoprint |
Highlight | 6090 Uv Flatbed Printer,Tx800 Printhead Inkjet Printer,Label Metal Uv Flatbed Printer |
6090uv flatbed printer crystal label metal printing tx800 print head acrylic clothes advertising inkjet printer
The flat-panel printing system supports the same color and white output, different color and white output, white ink underlay, cover, varnish, etc., and backward printing, with excellent anti-interference and stability. It is a kind of plate free full-color digital printing that is not limited by any material.
UV printing application materials: PVC, reflective film, canvas, carpet, leather, glass, ceramic tiles, metal, ceiling, aluminum, wood, door, acrylic Board, plexiglass board, foam board, corrugated cardboard, etc.
Technical Parameters
Printer Model | TC-2H609 | TC-3H609 | TC-4H609 | |
Printhead Quantity | 2 | 3 | 4 | |
Printhead Type | Epson 13200/F1080/TX800/Ricoh G5i | |||
TX800 & F1080 Print Speed |
4 pass | 3m²/H | 5m²/H | 7m²/H |
6 pass | 2m²/H | 3.5m²/H | 4m²/H | |
8 pass | 1.5m²/H | 2m²/H | 3m²/H | |
I3200-U1 Print Speed |
4 pass | 4m²/H | 6m²/H | 8m²/H |
6 pass | 3m²/H | 5m²/H | 6m²/H | |
8 pass | 2m²/H | 3m²/H | 4m²/H | |
Ricoh G5i Print Speed |
4 pass | 4m²/H | 5m²/H | 6m²/H |
6 pass | 3m²/H | 4m²/H | 5m²/H | |
8 pass | 2m²/H | 3m²/H | 4m²/H |
Technical Parameters
Computer | CPU:I5/I7系列RAM(内存):8GB HD(硬盘):2TB SSD:128G more For system disk only系统盘用 System(操作系统):Win7/Win10 64Bit |
|||
Accuracy/Mate.Thick. | 720 * 2880DPI/ 0-18mm | |||
Inks Color | CMYK+W+V+G(胶水)可选Optional | |||
Image Format | TIFF/JPG/JPEG/EPS/PDF/PNG | |||
RIP software | Maintop/Riprint/Photoprint | |||
Interface | USB2.0/3.0 | |||
Max Print Size | 900mm * 600mm | |||
Power and Voltage | AC100-240V/1.2KW 50/60Hz | |||
Temperature&Humidity | 20-30°C/60-70% | |||
Printer Size L/W/H | 1686*1482*780mm | |||
Wood Pack Size L/W/H | 1750*1550*850mm | |||
G.W&N.W | 185kg&150kg | |||
Other optional | Optional visual orientatiocylinder Print holder,leadshine motor |
Characteristic:
1. It is not limited by plate making, film and color register, and is easy to operate and maintain, with stable performance.
2. UV ink is an environment-friendly green ink, which has the characteristics of rapid curing, no volatile organic solvent VOC, less pollution, high efficiency, low energy consumption, etc.
3. Simple operating procedures and high-quality dyeing and coloring create a low-cost production structure, and color performance, waterproof, sunscreen, wear-resistant.
