TX800 Inkjet printer board set USB2.0 Double Head For Photo Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number U2FMB_V102,EFHB_V112
Minimum Order Quantity 20 sets of
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 182mm*112mm Head Board Specifications 198mm*132mm
Colour Blue Application Nozzle Model 4720/W5113,I3200,TX800,XP600,DX5,DX7
Product Name TX800 Inkjet Board Kit Feature Original And Brand New
Place Of Origin Changsha, China After Warranty Service The Warranty Is For 12 Months
High Light

TX800 USB2.0 Fiber Optic Circuit Board

,

TX800 USB2.0 Main Board motherboard

,

TX800 Inkjet Printer Kit

Leave a Message
Product Description

TX800 Optical fiber 2.0 Main Board Head board Inkjet Print Control System


USB2.0 optical fiber inkjet printing control system, application nozzle model: TX800, using optical fiber cable connection, fast transmission speed.
For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.



Data interface The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer Board support Single head, double head, three head, four head, eight head, sixteen head, thirty-two head
Color channel 6 channels/6 colors Trolley speed 1.2M/S
Number of nozzles 1080 Effective print width of print head 1 inches
Ignition frequency 30KHz RIP-software Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc.
Nozzle features Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks Application field Advertising photo printing, UV coil, textile printing and other industries
Nozzle protection Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection Function support Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc.




Application machine:



Photo machine,UV flatbed machine,Double-station direct printing machine, White ink scald transfer machine, etc.



Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.



UV printing application materials: a wide range of UV printing printing materials, flexible media such as: time stamp, PVC, reflective film, canvas, carpet, leather, etc.; rigid media such as: glass, ceramic tiles, metal, ceiling, aluminum, wood, door, acrylic Board, plexiglass board, foam board, corrugated cardboard, etc.



The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.





TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 0    TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 1   TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 2









Application scenario:





TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 3   TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 4     TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 5

                 Wood printing                                            Tile printing                                       Metal box color printing








Product Show:


Main board

TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 6

Double head board

TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 7

Sprinkler head Adapter board



TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 8

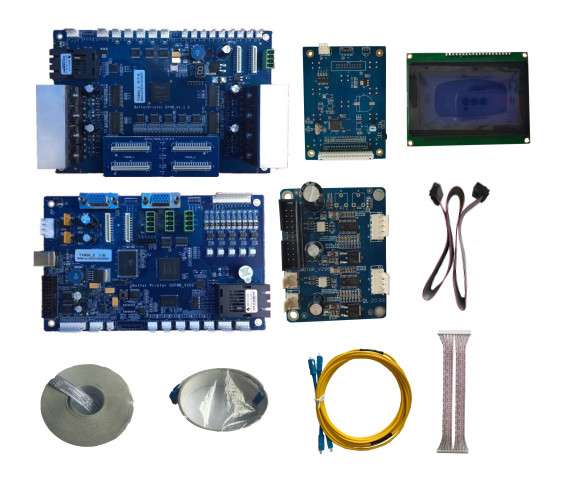

TX800 Inkjet Printer Board suit

TX800 Inkjet printer board set USB2.0 Double Head  For Photo Printer 9
