Printer Inkjet Better Printer main board Spurt draws , USB2.0 DX7 Inkjet Print Control System
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U2FMB_V102,EFHB_V112 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 182mm*112mm | Head Board Specifications | 198mm*132mm |
|---|---|---|---|
| Colour | Blue | Application Nozzle Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 |
| Feature | Original And Brand New | Type | Kit Board |
| Use For | Inkjet Printer | After Warranty Service | One Year （12 Months） |
| High Light | W5113 UV Flatbed Printer Inkjet Board,USB2.0 UV Flatbed Printer Inkjet Board,W5113 inkjet print control system |
||
Product Description
Spurt draws printer Inkjet Board , USB2.0 DX7 Inkjet Print Control System
USB2.0 optical fiber inkjet printing control system, application nozzle model: DX7, using optical fiber cable connection, fast transmission speed.
For photo machine inkjet printing,UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.
| Name | USB2.0 fiber optic Inkjet board DX7 | Board support | Single head, double head, three head, four head, eight head, sixteen head, thirty-two head |
| Data interface | The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer | Trolley speed | 1.2M/S |
| Color channel | 8 channels/8 colors | Effective print width of print head | 1 inches |
| Number of nozzles | 1440 | RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc. |
| Ignition frequency | 30KHz | Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks | ||
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
Application machine:
UV flatbed machine,Photo machine, white ink scald transfer machine,double-station direct printing machine, etc.
UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.
The heat transfer machine is suitable for all kinds of fabrics, Clothing cutting piece, seamless underwear, knitted underwear, swimwear, hats, gloves, umbrellas, etc.
The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
Application scenario:
Signage color printing Tile color printing Metal color printing
Product Show:

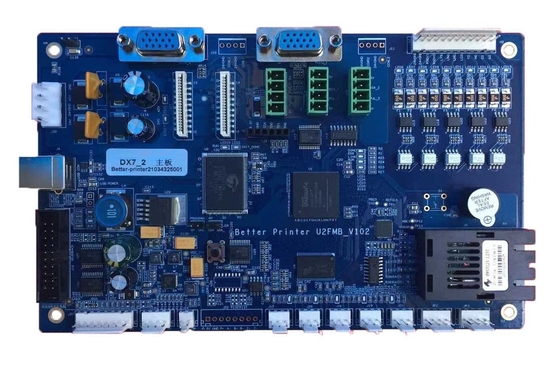

Main board

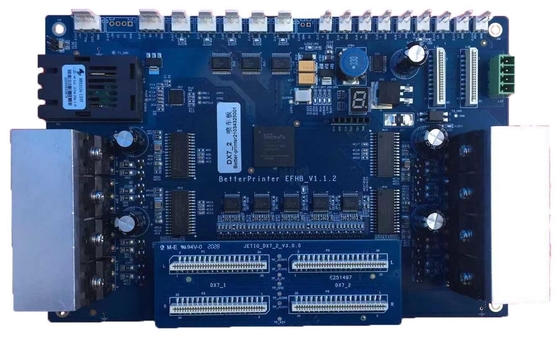

Double head board

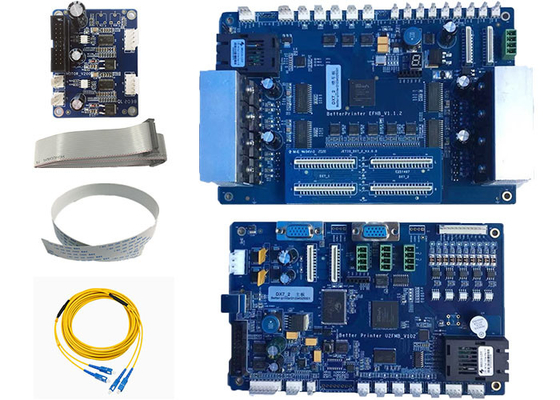

DX7 inkjet Printer board suit
Company Information:
Changsha BetterPrinter Intelligent Technology Co., Ltd. is a high-tech enterprise engaged in the research and development, production and sales of industrial inkjet printing control systems. Rich experience in electronic circuits and other fields.
The company is located in Changsha Economic and Technological Development Zone, Hunan Province, in the core area of eastern economic development, with obvious advantages in transportation hubs, logistics bases, economic business circles, and technical talents. In the future, BetterPrinter will move towards the goal of leading enterprise groups in the same industry, and create new brilliance for the development of modern enterprises.
Our Service:
1. We will provide more accurate and more efficient industrial inkjet printing control system research and development and services.
2. We have a professional after-sales technical service team to ensure that your products are of better quality.
3. We have a strict board test process to ensure that customers enjoy high-quality printing products.
4. We do 100% inspection before shipment.
