USB3.0 Inkjet Printer Kit 4720 Four Head Better Printer Inkjet Board For PET Film Heat Transfer Printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U3FMB_V101，EFMHB_V103，4720 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 182mm*112mm | Head Board Specifications | 240mm*172mm |
|---|---|---|---|
| Colour | Blue | Application Nozzle Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 |
| Type | Kit Board | Model | 4720 Printhead |
| Board Type | Inkjet Printer Four-head Control Board | After Warranty Service | The Warranty Is For 12 Months |
| High Light | 3.0 Main Board,4720 Printhead Main Board,USB3.0 Inkjet Printer Kit |
||
Product Description
4720 Optical fiber 3.0 Main board W5113 Head board Inkjet Print Control System
Quick details:
| Name | USB3.0 Optical fiber 4720/W5113 Inkjet Printer Board |
| Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. |
| Data interface | 1.25G optical fiber (expandable dual optical fiber) is connected to the spray car board, and the USB3.0 cable is connected to the computer |
| Color channel | 8 channels/8 colors |
| Number of nozzles | 3200 |
| Ignition frequency | 30KHz |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Board support | Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head |
| Trolley speed | 1.2M/S |
| Effective print width of print head | 1.33 inches |
| RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc. |
| Application field | Can be used for advertising, UV flat panel, digital printing and other industries |
Application machine:
Elliptical digital machine, stamping painting machine,heat transfer machine, belt guide machine, carton machine, etc.
Oval digital printing features: simple operation, can realize automatic printing of multiple colors and patterns, comes with a drying function, the printing is not easy to damage, the printing quality is good, it can be combined freely, and the degree of automation is high. The ultimate printing effect on clothing provides an effective solution for digital application technology.
Features of the textile printing scheme: stable products and fast speed. Humanized operation interface, one-time setting, repeated printing, easy to operate. A variety of printing modes are available for customers to choose to meet different printing quality or production needs.
Packaging printing is applied to the surface printing of various shapes and materials on site, whether it is porous or non-porous, flat or curved, fabric or ribbed surface, such as plastic, cloth, paper, fur, ceramic, glass or metal. At the same time, it is suitable for printing at various speeds, regardless of uniform speed, variable speed or intermittent operation, and is most suitable for continuous and non-stop production lines.
Application scenario:
Clothing color printing Clothing printing Schoolbag hot Painting
Product Show:

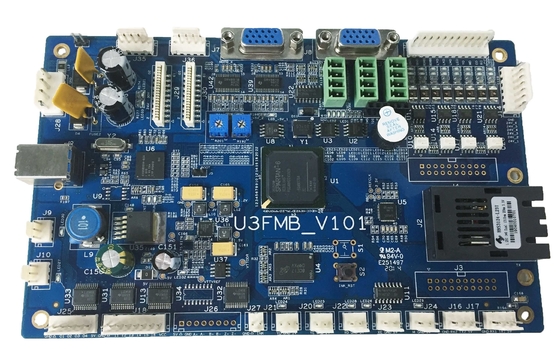

Main board

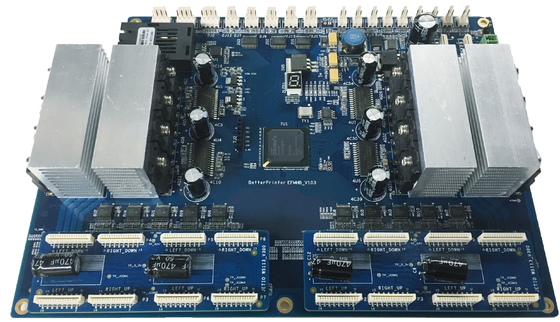

Four head board

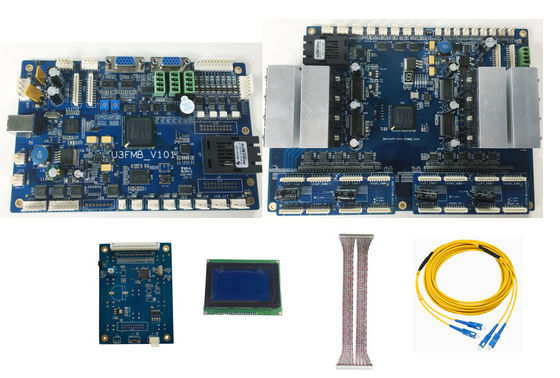

4720 Inkjet Printer Board Suit
Advantages and Services:
1.The Research and Development personnel have been engaged in the development and research of industrial printing system for many years, and have excellent professional ability.
2.Technical service team, familiar with the company's products and applications, with strong problem-solving ability, to ensure that your products are better quality.
3.We will provide more accurate, more efficient industrial inkjet printing control system development and services.
4.We have a strict board test process to ensure that customers enjoy high quality printing products.
5.We do 100% test before delivery: raw material test, production test, board card printing test, board card shipment test.
6.The product warranty period is 1 year. Damage caused by operating errors or human factors is not covered by the warranty.
Packing details:
Inner Package : bubble plastic bag.
Outter package : Carton.
