Network Port DX5 Double Head inkjet Board Industry Printer System For Wall Printer Ground Print

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number ETHWMB_V101,WHB_DX5_2J_V103,DX5
Minimum Order Quantity 20 sets of
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms TT/Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Main Board Specifications 200mm*111mm Head Board Specifications 94mm*123mm
Colour Blue,Green Application Nozzle Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610
Feature Original And Brand New Product Name DX5 Inkjet Board Kit
Use For Industrial Inkjet Printer Type Kit Board
High Light

DX5 USB2.0 Photo Machine Inkjet Board


DX5 main board


Double Head DX5 Inkjet Printer System

Leave a Message
Product Description

Network Port DX5 Double Head inkjet Board Industry Printer System For Wall Printer Ground Print



Quick Details:


Name:                    Network Port Printer Inkjet Board                                 Nozzle model: Epson DX5


Color channel:       8 channels/8 colors                                                       Number of nozzles:  1440


Ignition frequency: 30KHz                                                                           Trolley speed:          1.2M/S


Data interface:       Network cable is connected to the computer,Flexible flat cable to the head board.


Nozzle features:     Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks.


Nozzle protection:   Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.


Board support:       Single head, double head, three head, four head, eight head, sixteen head, thirty-two head.


Function support:   Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, automatic reset, disconnection and continuous printing, paper out detection, ink stack self-check, etc.



Application machine:


White ink scald transfer machine,Photo machine,UV flatbed machine,Double-station direct printing machine, etc.


The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.


Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.

UV printing application materials: a wide range of UV printing printing materials, flexible media such as: time stamp, PVC, reflective film, canvas, carpet, leather, etc.; rigid media such as: glass, ceramic tiles, metal, ceiling, aluminum, wood, door, acrylic Board, plexiglass board, foam board, corrugated cardboard, etc.



Application scenario:


Network Port DX5 Double Head inkjet Board Industry Printer System For Wall  Printer Ground Print 0



Product Show:

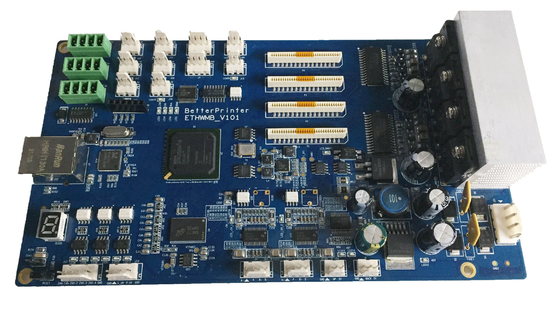

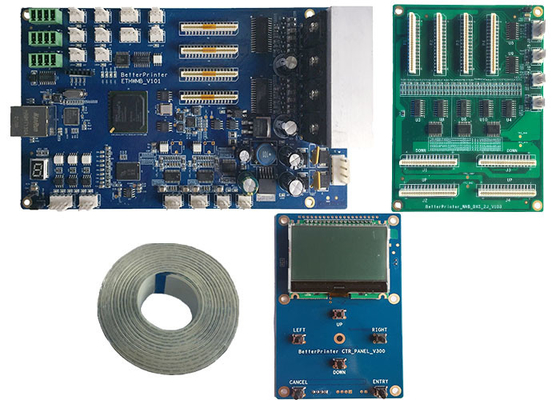

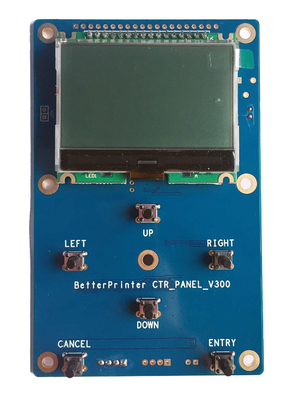

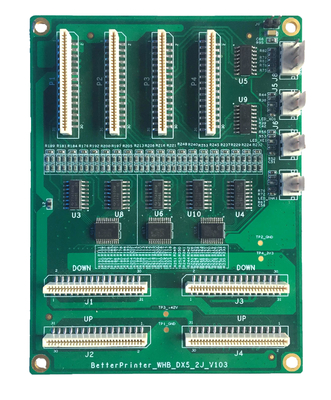

DX5 Inkjet Board Printer Kit


Network Port DX5 Double Head inkjet Board Industry Printer System For Wall  Printer Ground Print 1



Network Port DX5 Double Head inkjet Board Industry Printer System For Wall  Printer Ground Print 2
