USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number XP600 double head inkjet board
Minimum Order Quantity 10 sets
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms TT/USD account/WeChat/Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 182mm*112mm Head Board Specifications 198mm*132mm
Colour Blue Application Nozzle Model 4720/W5113,I3200,TX800,XP600,DX5,DX7
Product Name XP600 Inkjet Board Kit Model XP600 Printhead
Printing Type Inkjet Printer Place Of Origin Changsha, China
High Light

epson XP600 Inkjet Board

,

epson XP600 printhead board

,

XP600 Inkjet Printer Control System

Leave a Message
Product Description

Inkjet printer XP600 kit board for Epson XP600 double head four head UV flatbed printing





Detail intruduction:



1. USB2.0 optical fiber inkjet printing control system, application nozzle model: XP600, using optical fiber cable connection, fast transmission speed.



2. For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.



3. Data interface:The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer.



4. Color channel:6 channels/6 colors.



5. Number of nozzles:1080.



6. Ignition frequency:30KHz.



7. Trolley speed:1.2M/S.



8. Effective print width of print head:1 inches.



9. Board support:Single head, double head, four head, eight head.



10. Nozzle features:Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks.



11. Nozzle protection:Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.



12. Function support:Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc.





Application machine:

White ink scald transfer machine,Photo machine,UV flatbed machine,Double-station direct printing machine, etc.



UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.



The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.







USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 0 USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 1  USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 2







Application scenario:





USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 3     USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 4     USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 5

               Outdoor advertising printing                               Phone case color printing                Sliding door color printing







Product Show:

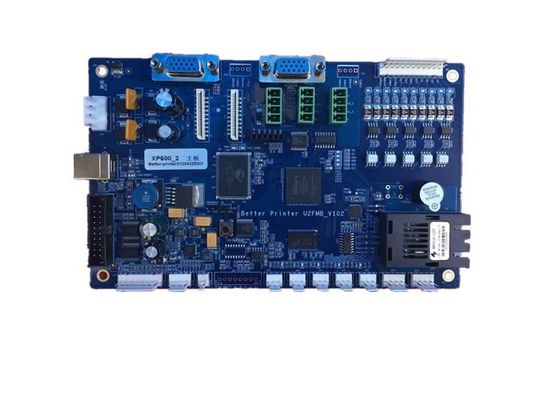

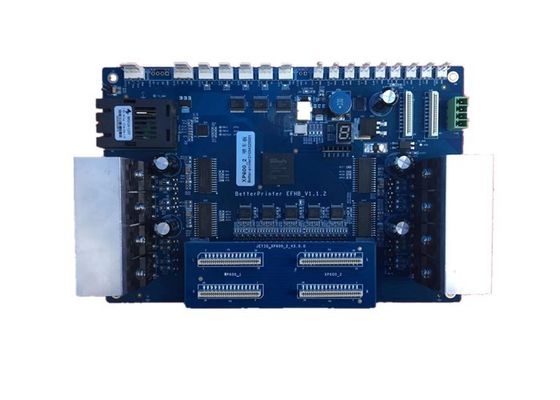

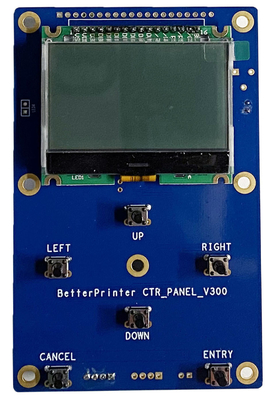

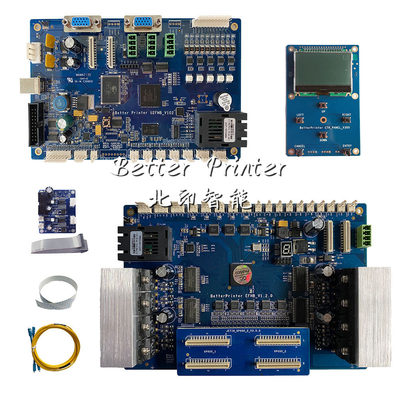

XP600 Inkjet Printer Board suit



USB2.0 Double Head Better Printer XP600 Inkjet Printer Control System For UV Flatbed Printer 6







Packaging & Shipping:

1. The shipping mothod are DHL etc.
2. The delivery time is about 3-10 days.
3. All shipping time depends on different countries .

Our Services:

1. We will send the tracking number to you after you make the payment for us .

Convenient for you to check your order information.

2. All products we sell have been passed strict inspection before shipment.
We will try our best to avoid any quality problem in advance.

3. We both support Retail Orders and Wholesale Orders.
If you are the wholesaler, you can get a wholesale price from us .





Company Information:

Changsha BetterPrinter Intelligent Technology Co., Ltd. is a high-tech enterprise engaged in the research and development, production and sales of industrial inkjet printing control system. It mainly focuses on the research and development and technical services, and has rich experience in the fields of ink dot control, image algorithm, color processing, nozzle drive and electronic circuit.



"Quality as the core, market as the prerequisite, technology as the backing" are the basic principles of our company.
