Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number ETHWMB_V101,WHB_W5113_1J_V105,4720
Minimum Order Quantity 20 sets of
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 200mm*111mm Head Board Specifications 94mm*123mm
Colour Blue Application Nozzle Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610
Board Type Inkjet Printer Single Head Control Board Type Kit Board
Place Of Origin Changsha, China Model 4720 Printhead
High Light

W5113 4720 Printhead Inkjet Printer Kit

,

One Set W5113 Inkjet Printer Kit

,

W5113 Integrated Circuit Board

Leave a Message
Product Description

Network Interface 4720 Single Head Inkjet Print board Kit Use For Photo Printer





Quick Details:

Name: Network Interface 4720 Inkjet Print Board.
Nozzle model: Epson 4720/W5113.
Data interface: Network cable to connect to the computer, flexible flat cable is connected to the head board.
Color channel: 8 channels/8 colors.
Number of nozzles: 3200.
Ignition frequency: 30KHz.
Trolley speed: 1.2M/S.
Effective print width of print head: 1.33 inches.
Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.
Board support: Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head.
RIP-software: Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc.





Application machine:



Wall printers, ground machines, photo machines, small-format flatbed printing, etc.



UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.

The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.

Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 0Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 1Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 2




Application scenario:

Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 3    Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 4Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 5

        Jigsaw color printing                                Wall color printing                                            Ground painting



Product Show:

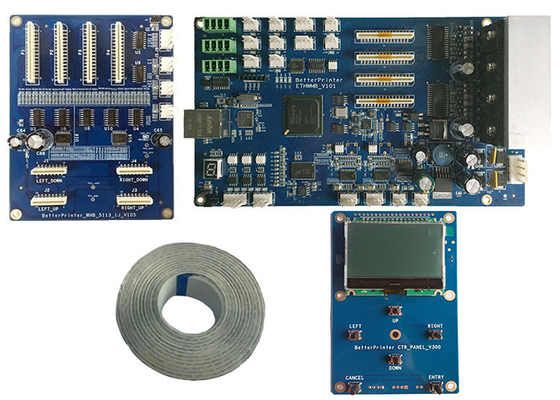

4720  Inkjet Printer Board suit



Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 6

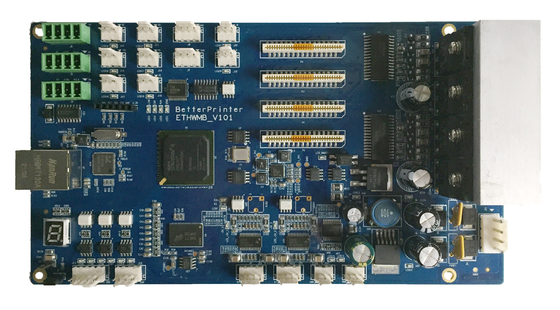

Main board



Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 7

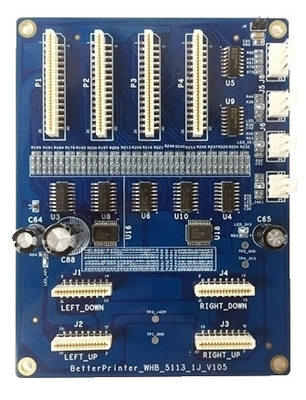

Single head board

Network Interface 4720 Single Head Inkjet Printer Better Printer mother board Kit Use For Photo Printer 8







Our Service:



1. We will delivery goods within 3-10working days after confirm receive your payment.



2. If you have any requirments and questions about our products,please contact us by WhatsApp or the Email,We will try our best to solve the problem for you.



3. Quality Guarantee:As an expert in this field, inkjet print board has its own lab to create and test products.To ensure our quality, there’re series of tests, including printing test,life test,to make sure 100% print board in good quality.



4. The products are strictly packed to ensure the safety of the products during transportation..We care more about the safety of products delivered than you~ please rest assured!





Packing details:



Inner Package : bubble plastic bag.



Outter package : Carton.
