Tape Guide Printer USB2.0 4720 Inkjet Board W5113 Double Head Inkjet Kit

Inkjet Digital Printer kit board for Epson 4720 5113 Double Head Machine

Quick details:

1. USB2.0 optical fiber inkjet printing control system, application nozzle model: 4720/W5113, using optical fiber cable connection, fast transmission speed.

2. Nozzle features: Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks.

3. Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.

4. Board support: Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head.

5. RIP-software: Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc.

6. Color channel: 8 channels/8 colors.

7. Number of nozzles: 3200.

8. Ignition frequency: 30KHz.

9. Trolley speed: 1.2M/S.

10. Effective print width of print head: 1.33 inches.

11. Application field: Advertising photo printing, UV coil, textile printing and other industries.

Application machine:

UV flatbed machine,Photo machine, white ink scald transfer machine,double-station direct printing machine, etc.

The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.


UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.

Application scenario:

Tile printing                                   Sliding door color printing                                    Wood printing

Product Show:

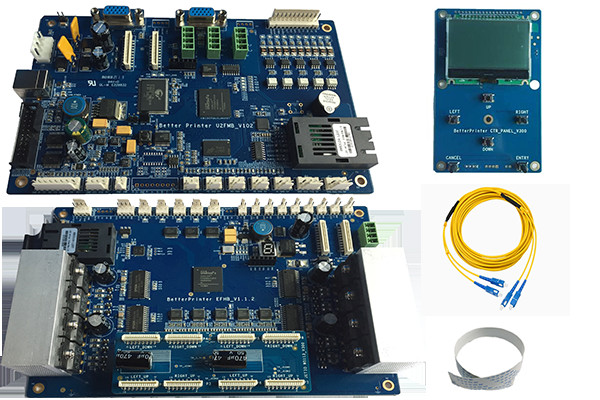

4720/W5113 inkjet Printer board suit

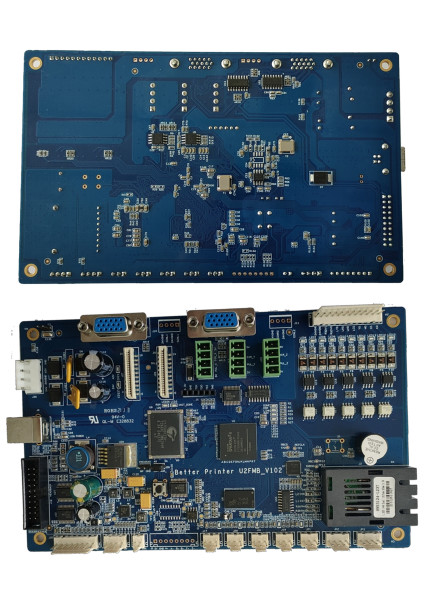

Main board

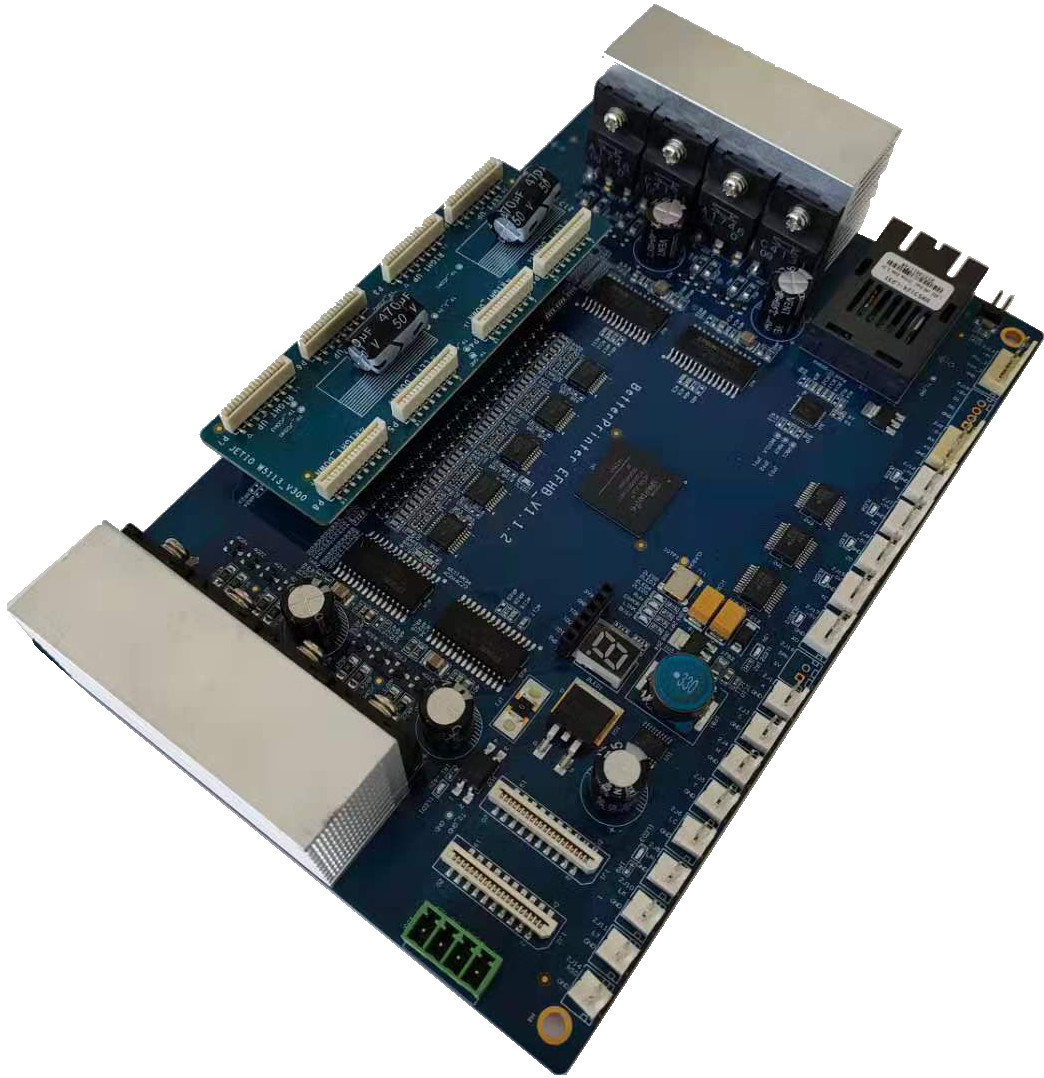

Head board

Cautions:

1.Shipped by DHL, the delivery time is about 3-10 days, The warranty period of the board card is 1 year. The damage caused by operation error and human factors is not covered by the warranty.

2.If there are after-sales problems with Board Cards, the returned freight will be borne by the customer.

3.All shipping time depends on different countries, we cannot control the delivery time because it is handled by a third-party service.

4.If the package does not arrive at the expected time, please contact us. We will help you follow up and give you a satisfactory answer.

5. Safe Package. We offer good and safe pack for our products, with protect film and Air bubble bag together with the products in the carton.

6. All products are at a reasonable price.
