DX7 Inkjet Print Control System For Low Cost Single Head Flatbed Printer photo printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U2EWMB_V104，WHB_DX7_1J_V103，DX7 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer/WeChat/Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MAIN BOARD SPECIFICATIONS | 182mm*112mm | HEAD BOARD SPECIFICATIONS | 63mm*123mm |
|---|---|---|---|
| APPLICATION NOZZLE MODEL | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | COLOUR | Blue |
| Use For | Industrial Inkjet Printer | Type | Kit Board |
| Nozzle Model | DX7 Printhead | Feature | Original And Brand New |
| Highlight | 35PIN Epson DX7 ribbon flexible flat cable,35PIN ribbon flexible flat cable,DX7 35PIN ffc fpc cable |
||
Product Description
DX7 Inkjet Print Control System For Low Cost Single Head Flatbed Printer photo printer
Product Details:
USB2.0 flat wire inkjet printing control system, application nozzle model: DX7, using flat line connection, cost-effective. Provides various nozzle arrangements and spot color settings, such as staggered (arranged) full color, white color at the same time, side by side, side by side with 8 colors (kcmy+4 spot colors), etc.
| Data interface | USB2.0 cable to connect to the computer, Flexible flat cable to the head board | Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Color channel | 8 channels/8 colors | Board support | Single head, double head, three head, four head, eight head, sixteen head, thirty-two head |
| Number of nozzles | 1440 | Trolley speed | 1.2M/S |
| Ignition frequency | 30KHz | Effective print width of print head | 1 inches |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks | RIP-software | Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc. |
| Application field | Advertising photo printing, UV coil, textile printing and other industries | Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. |
Application machine:
Photo machines, small-format flatbed printing,Wall printers, ground machines, etc.
The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.
Floor machine: a machine that can print on floors, wooden floors, and tile floors. For example: ground painting of parking spaces, etc.
Application scenario:
Advertising photo printing Wall color printing Phone case color printing
Product Image:

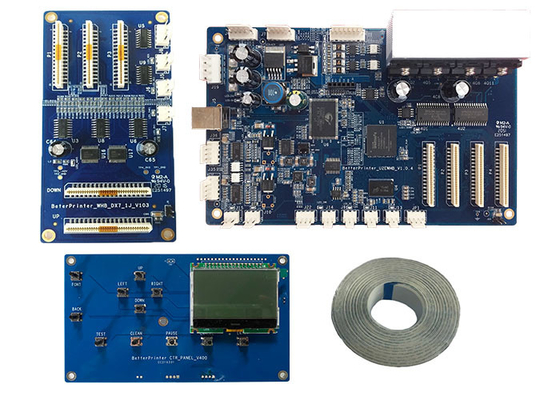

Printer Inkjet Board DX7 Suit

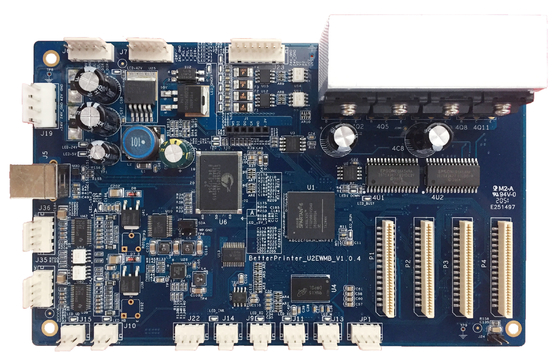

Main board

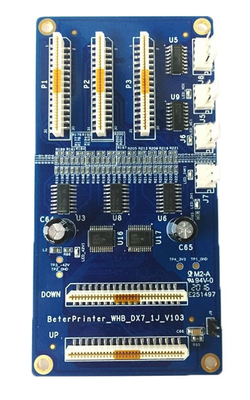

Head board
