DX5 Double Head Inkjet Printer Board USB2.0 For Photo Printer Spurt Draws Printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U2FMB_V102,EFHB_V112,DX5 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer/WeChat/Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MAIN BOARD SPECIFICATIONS | 182mm*112mm | HEAD BOARD SPECIFICATIONS | 198mm*132mm |
|---|---|---|---|
| APPLICATION NOZZLE MODEL | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | COLOUR | Blue |
| Type | Kit Board | Use For | Industrial Inkjet Printer |
| Nozzle Model | DX5 Printhead | Feature | Original And Brand New |
| Highlight | 2 Head Inkjet Printer Board,DX5 Inkjet Printer Board,USB2.0 Epson DX5 Printer Board |
||
Product Description
DX5 Double Head Inkjet Board USB2.0 Inkjet Printer System For photo printer spurt draws printer
USB2.0 optical fiber inkjet printing control system, application nozzle model: DX5, using optical fiber cable connection, fast transmission speed.
For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.
| Name | USB2.0 Optical fiber inkjet Printer Board |
| Nozzle model | Epson DX5 |
| Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. |
| Data interface | The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer |
| Color channel | 8 channels/8 colors |
| Number of nozzles | 1440 |
| Ignition frequency | 30KHz |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Board support | Single head, double head, three head, four head, eight head, sixteen head, thirty-two head |
| Trolley speed | 1.2M/S |
| Effective print width of print head | 1 inches |
| RIP-software | Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc. |
| Application field | Advertising photo printing, UV coil, textile printing and other industries |
Application machine:
White ink scald transfer machine,Photo machine,UV flatbed machine,Double-station direct printing machine, etc.
UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.
Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.
The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
Application scenario:
Tile color printing Wood printing Acrylic printing
Product Show:

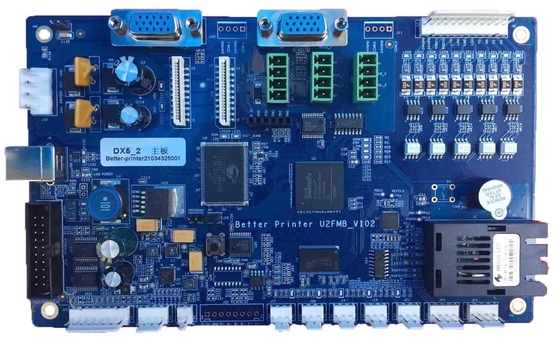

Main board
Head board

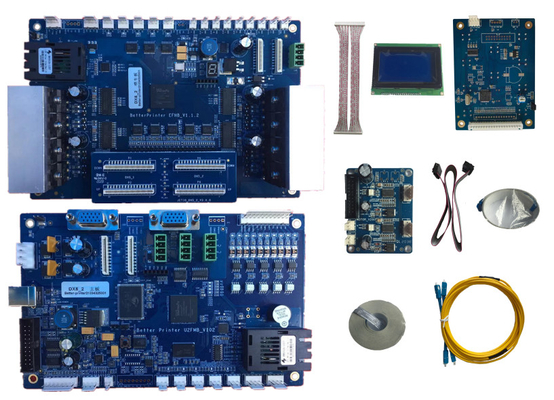

Printer Inkjet Board DX5 Kit
OUR ADVANTAGE:
1. The company's R&D team has been engaged in the development and research of industrial printing systems for many years.
2. The company's technical service team is familiar with the company's products and applications, and has a strong ability to solve problems.
3. The company's production materials are directly purchased by the original factory to strictly ensure the quality of board production.
4. The company's products have been successfully applied in many industries, and have reached a high level in terms of color effect and printing speed efficiency.
OUR SERVICE:
1. We will provide more accurate and more efficient industrial inkjet printing control system research and development and services.
2. We have a strict board test process to ensure that customers enjoy high-quality printing products.
3. We have a professional after-sales technical service team to ensure that your products are of better quality.
4. We do 100% inspection before shipment.
