Inkjet Printer Control System Better Printer I3200 Network Interface Eight Heads for PET Film Heat Transfer Printer
| Place of Origin | Made in China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | ETHFMB_V101，EFMHB_V103 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer/WeChat/Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 182mm*112mm | Head Board Specifications | 240mm*172mm |
|---|---|---|---|
| Colour | Blue | Application Nozzle Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 |
| Type | Kit Board | Use For | Industrial Inkjet Printer |
| Feature | Original And Brand New | Place Of Origin | Changsha, China |
| High Light | 26 pin flexible flat cable,3m flexible flat cable,3m 26 pin flat ribbon cable |
||
Product Description
Network Interface I3200 Eight Heads Inkjet Printer Control System,For PET Film Heat Transfer Printer
Quick Details:
This program provides various nozzle arrangements and spot color settings, such as staggered (arranged) full color, white color at the same time, side by side, side by side full color, side by side white color, side by side 8 colors (kcmy+4 spot colors), etc.
The eight-head I3200 control system is composed of a dual fiber optic gigabit network motherboard, two bulk boards and four double-head I3200 conversion boards.
| Name | I3200 network interface inkjet board |
| Data interface | 2*1.25G optical fiber is connected to the spray car board,network cable to connect to the computer |
| Extension ports | X, Y, Z three motor control interface |
| Ink stack motor control interface | |
| Blade motor control interface | |

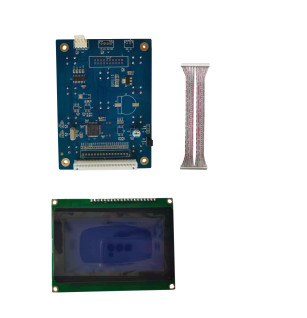

| Key panel communication interface | |
| 7* limit input | |
| 16*24V drive output interface | |
| 2* Differential motor signal output + grating signal input | |
| Six VCC inputs and four 5V driver outputs are reserved | |
| Reserve magnetic grid input | |
| Nozzle features | EPSON print head, can print water, heat transfer printing, coating, weak solvent, UV ink |
| Warranty period | One year (12 months) |
Application machine:
Heat transfer machines, circular treadmills, circular elliptical machines, photo printer,flatbed printer, belt guides,corrugated paper printers, leather machines, etc.
High precision industrial ellipse digital printing scheme, equipped with Epson I3200 industrial sprinkler head, the printing ink is delicate, the pattern is free of miscellaneous spots, uniform color block, gigabit network cable connection, faster speed, stable color matching nozzle. The combination of 8-head ignition frequency and reasonable nozzles has achieved ultra-high printing efficiency and greatly improved the production efficiency of customers. simple operation, can realize automatic printing of multiple colors and patterns, comes with a drying function, the printing is not easy to damage, the printing quality is good, it can be combined freely, and the degree of automation is high.
Features of the textile printing scheme: stable products and fast speed. Humanized operation interface, one-time setting, repeated printing, easy to operate. A variety of printing modes are available for customers to choose to meet different printing quality or production needs.
Application scenarios:
Clothing printing Home textile printing Clothing color printing
Product Image:

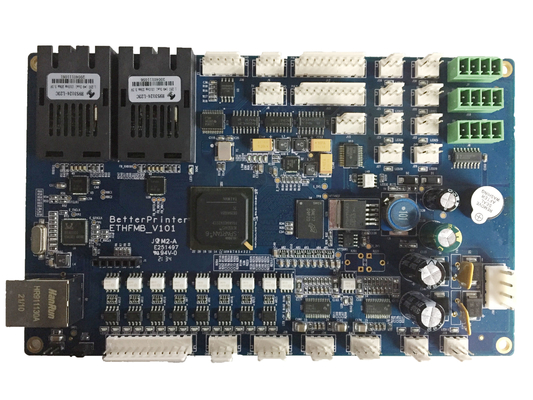

Main board

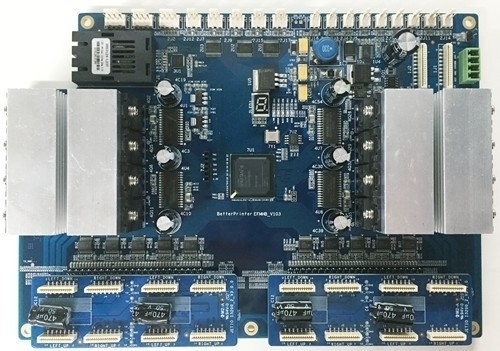

Head board

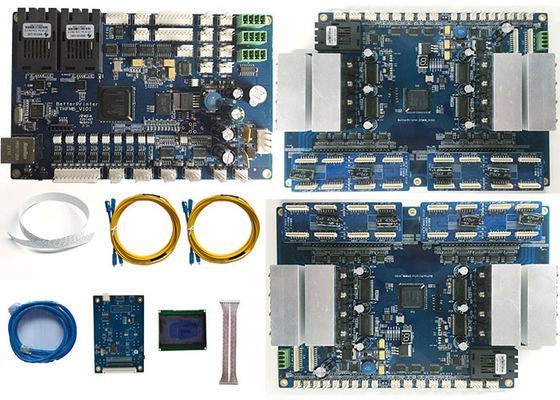

Inkjet Printher Control Board I3200 suite
FAQS
1. Q: What is your MOQ of Gigabit network Control Board?
A: 20 Set.
2. Q: How long can I get feedback after sent the enquiry?
A: We will reply within 12 hours in working day.
3. Q: What kind of shipping do you have?
A: DHL etc.
4. Q: what kinds of payment method could you accept?
A: bank transfer,wechat,Alipay.
5. Q: How to order?
A: Please contact us for the stock, when we have it in stock, you just pay to us directly, we will ship the goods out in 3-10 working day after payment.
Packaging and logistics:
Inner Package : bubble plastic bag.
Outter package : Carton.
⇒⇒⇒⇒
