USB3.0 four head main board inkjet control board Motherboard

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number U3FMB_V101
Minimum Order Quantity 1 set
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name USB3.0 Four Head Main Board Specifications 182mm*112mm
Colour Blue Feature Original And Brand New
Use For Industrial Inkjet Printer Place Of Origin Changsha, China
High Light

four head Oval Printer Inkjet Board

,

USB3.0 Oval Printer Inkjet Board

,

USB3.0 inkjet printed circuit board

Leave a Message
Product Description

USB3.0 optical fibre four-head board Main board inkjet printer board





Board card purpose: send print head data to the spray car board, control the motor



Specification: 182mm*112mm



Data interface: 1.25G optical fiber (expandable dual optical fiber) connected to the spray car board


                         USB3.0 cable to connect to the computer



Expansion interface: X, Y, Z three motor control interfaces


                                 Ink stack motor control interface


                                 Wiper motor control interface


                                 Button panel communication interface


                                 7*Limit input


                                16*24V drive output interface


                                 2*Differential motor signal output + grating signal input


                                 Reserve 6 channels of vcc input, 4 channels of 5V drive output


                                 Reserved magnetic grid input

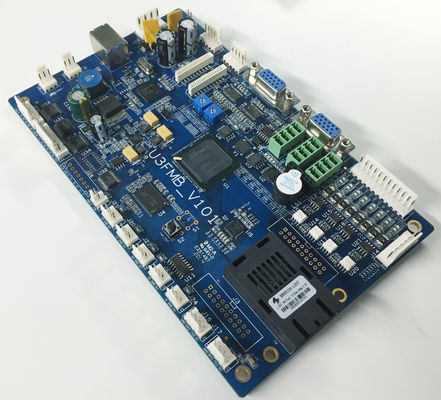

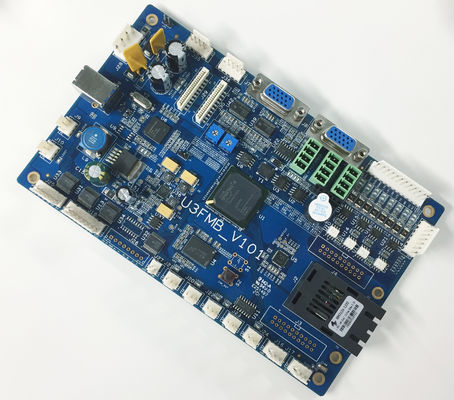

Product Image:







USB3.0 four head main board  inkjet control board Motherboard 0







USB3.0 four head main board  inkjet control board Motherboard 1







USB3.0 four head main board  inkjet control board Motherboard 2







USB3.0 four head main board  inkjet control board Motherboard 3





USB3.0 four head main board  inkjet control board Motherboard 4
