low cost tx800 double head inkjet board kit use for flatbed printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U2EWMB_V104，WHB_TX800_2J_V102,TX800 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MAIN BOARD SPECIFICATIONS | 182mm*112mm | HEAD BOARD SPECIFICATIONS | 94mm*123mm |
|---|---|---|---|
| Applicable Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | COLOUR | Blue |
| TYPE | Kit Board | MODEL | TX800 Printhead |
| USE FOR | Industrial Inkjet Printer | FEATURE | Original And Brand New |
| Highlight | TX800 Inkjet Printer printed control board,100mm TX800 printed control board,100mm TX800 small circuit board |
||
Product Description
low cost tx800 double head inkjet board kit use for flatbed printer
Quick details:
| USB2.0 flat wire inkjet printing control system, application nozzle model: TX800. |
| Data interface: USB2.0 cable to connect to the computer, flat cable. |
| Nozzle features: Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks. |
| Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection. |
| Board support: Single head, double head, three head, four head, eight head, sixteen head, thirty-two head. |
| Color channel: 6 channels/6 colors. |
| Number of nozzles: 1080. |
| Ignition frequency: 30KHz. |
| Trolley speed: 1.2M/S. |
| Effective print width of print head: 1 inches. |
Application machine:
Wall printers, ground machines, photo machines, small-format flatbed printing, etc.
Floor machine: a machine that can print on floors, wooden floors, and tile floors. For example: ground painting of parking spaces, etc.
The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.
Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.
Application scenario:
Ground painting Wall color printing Tile printing
Product Image:

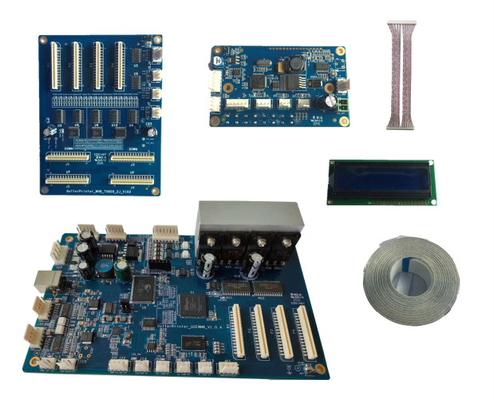

TX800 Printer inkjet board suit
Main board
Double head board
About Us:
• Product application: advertising printing, textile printing, packaging printing, carton printing and other industries to provide inkjet board.
• Strictly ensure the production quality of board cards, all products are shipped to the machine testing.
• Our products have achieved a high level in color effect and printing speed and efficiency.
• The software and hardware team has been engaged in the development and research of industrial printing system for many years, and has the ability of continuous independent innovation and product research and development.
• The technical service team is familiar with the company's products and applications, and has strong analytical and problem-solving capabilities.
