Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number ETHFMB_V101,EFHB_V112,DX5
Minimum Order Quantity 20 sets of
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 182mm*112mm Head Board Specifications 198mm*132mm
Applicable Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 BOARD TYPE Inkjet Printer Four Head Control Board
Nozzle Model DX5 Printhead COLOUR Blue
USE FOR Industrial Inkjet Printer FEATURE Original And Brand New
High Light

I3200 Dual Head PCB Adapter Board

,

I3200 PCB Adapter Board

,

I3200 Printer Circuit Board

Leave a Message
Product Description

Gigabit network dx5 four head board inkjet printer system for UV Flatbed Printer





Quick Details:



Gigabit network printing control system, application nozzle model: DX5, using network cable connection, fast transmission speed. For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.

Name: Network Interface DX5 four head inkjet board.



Data interface: Network cable is connected to the computer, 1.25G optical fiber is connected to the spray car board.



Function support: Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, automatic reset, disconnection and continuous printing, paper out detection, ink stack self-check, etc.



Color channel: 8 channels/8 colors.



Nozzle features: Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks.



Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.



Board support: Single head, double head, three head, four head, eight head, sixteen head, thirty two head.



RIP-software: Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc.





Application machine:



Flatbed Printer,photo printer,Elliptical digital machine, stamping painting machine,heat transfer machine, belt guide machine, carton machine, etc.



UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.



The heat transfer machine is suitable for all kinds of fabrics, Clothing cutting piece, seamless underwear, knitted underwear, swimwear, hats, gloves, umbrellas, etc.



The main working process of textile printing and dyeing: fabric sizing, digital printer will spray the pattern on the fabric, oven high temperature drying, steaming, washing. Simplifies the traditional dyeing process, saving a lot of manpower, material resources and time. Use variable dot technology to make print patterns more delicate and colors more vivid.



Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 0        Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 1Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 2







Application scenario:



Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 3Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 4Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 5

Acrylic color printing                                                Hat hot Painting                                              Tile color printing







Product Image:

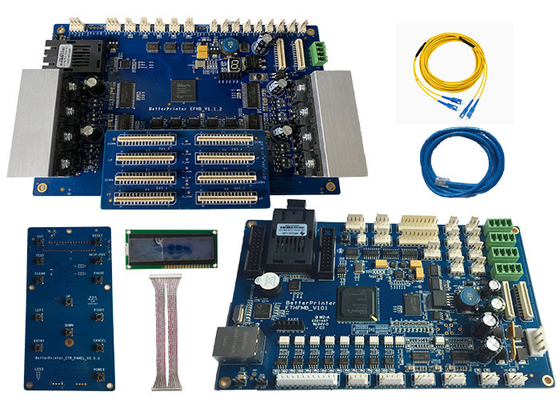

DX5 Inkjet Printer Board suit

Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 6

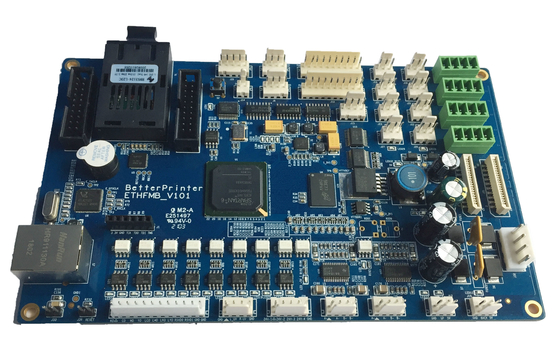

Main board

Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 7

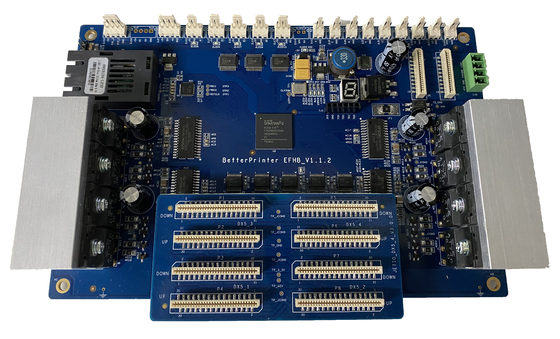

Head board



Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 8







Company Information:



Changsha BetterPrinter Intelligent Technology Co., Ltd. is a high-tech enterprise engaged in the research and development, production and sales of industrial inkjet printing control systems. Rich experience in electronic circuits and other fields.

The company is located in Changsha Economic and Technological Development Zone, Hunan Province, in the core area of eastern economic development, with obvious advantages in transportation hubs, logistics bases, economic business circles, and technical talents. In the future, BetterPrinter will move towards the goal of leading enterprise groups in the same industry, and create new brilliance for the development of modern enterprises.



Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 9Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 10Gigabit network dx5 four head  board inkjet printer system for UV Flatbed Printer 11





Our Service:



1. Network interface (Gigabit network) Inkjet Printer Board are all Ships after testing. The warranty is Twelve months.



2.The products are strictly packed to ensure the safety of the products during transportation..We care more about the safety of products delivered than you~ please rest assured!



3. If you have any requirments and questions about our products,please contact us by WhatsApp,We will try our best to solve the problem for you.
