Inkjet Printer Control System USB2.0 Double Head DX5 For White Ink Pyrography Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number U2FMB_V102,EFHB_V112,DX5
Minimum Order Quantity 20 sets of
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 182mm*112mm Head Board Specifications 198mm*132mm
Colour Blue Application Nozzle Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610
Type Kit Board Printing Type Industrial Inkjet Printer
Nozzle Model DX5 Printhead Feature Original And Brand New
High Light

Epson DX5 Inkjet Print Board

,

Epson DX5 Print Circuit Board

,

Single Head DX7 Inkjet Printer System

Leave a Message
Product Description

USB2.0 Double Head DX5 Inkjet Printer System For White Ink Pyrography Printer





Quick Details:



Name: USB2.0 Optical fiber Printer Inkjet Board.                                             Nozzle model: Epson DX5.



Color channel: 8 channels/8 colors.                                                                 Number of nozzles: 1440.



Ignition frequency: 30KHz.                                                                               Trolley speed: 1.2M/S.



Data interface: The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer.



Nozzle features: Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks.



Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.



Board support: Single head, double head, three head, four head, eight head, sixteen head, thirty-two head.



Function support: Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc.





Application machine:



White ink scald transfer machine,Photo machine,UV flatbed machine,Double-station direct printing machine, etc.



The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.



Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.


UV printing application materials: a wide range of UV printing printing materials, flexible media such as: time stamp, PVC, reflective film, canvas, carpet, leather, etc.; rigid media such as: glass, ceramic tiles, metal, ceiling, aluminum, wood, door, acrylic Board, plexiglass board, foam board, corrugated cardboard, etc.



Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 0Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 1Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 2





Application scenario:



USB2.0 Double Head DX5 Inkjet Printer System For White Ink Pyrography Printer 3USB2.0 Double Head DX5 Inkjet Printer System For White Ink Pyrography Printer 4USB2.0 Double Head DX5 Inkjet Printer System For White Ink Pyrography Printer 5

         Wood printing                                                  Glass printing                                  Leather printing



Product Show:

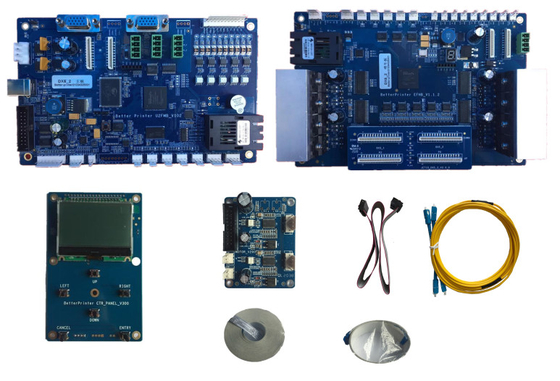

Printer Inkjet Board DX5 Suit



Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 6

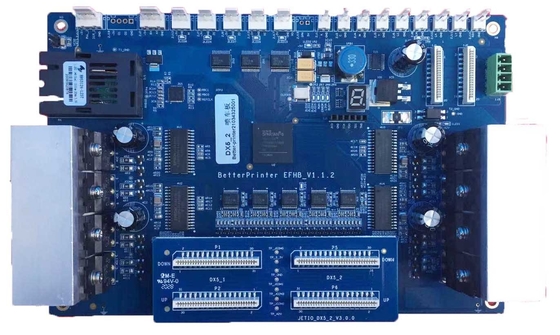

Head board



Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 7

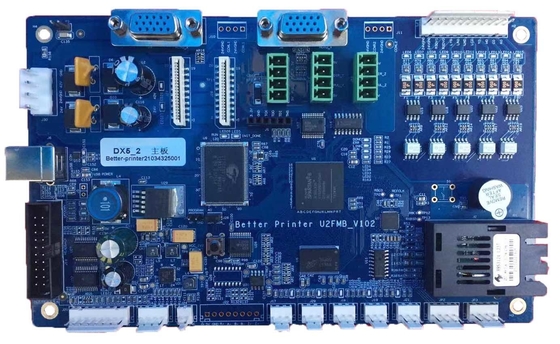

Main board



Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 8









Seller promise:


1.We guarantee that the product kit will be completely delivered according to the product list.



2.We will provide printing software and wiring diagram after the buyer receives the goods.



*If you need more information, please contact us.





About us:

No youth, no struggle, there is printing, with BetterPrinter!!!


Changsha BetterPrinter Intelligent Technology Co., Ltd. adheres to the principle of "quality as the core, market as the premise, and technology as the backing", and will continue to focus on the development and service of industrial inkjet printing control systems, and always take high-quality inkjet printing as the core technology. Continuously improve and innovate to provide customers with a complete set of solutions for image output, printing, system control, etc.



Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 9Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 10Inkjet Printer Control System USB2.0 Double Head DX5  For White Ink Pyrography Printer 11
