Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number 7610 double head network port board
Minimum Order Quantity 10 set
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms TT/Bank transfer / WeChat / Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 200mm*111mm Head Board Specifications 94mm*123mm
Quality Control 100% Pre-Tested Well Before Shipping Nozzle Model 7610 Printhead
Applicable Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 Type Kit Board
Use For Industrial Inkjet Printer Feature Original And Brand New
Technical Support Professional Technical Support Application Machinery Repair Shop, Printing Shops, Advertising
High Light

Dtf Printer 7610 Board

,

Print 7610 Double Head Board

,

UV Dtf Printer 7610 Board

Leave a Message
Product Description

Print board 7610 Double head board for ECO Solvent Printer Network flat cable version board for UV dtf printer





Quick details:



The 7610 inkjet printing control system uses a Network cable to connect to the computer. Mature solutions are provided for Wall print, Floor Print,small flat panel printing , advertising photo printing, etc.



1. Data interface: Network cable to connect to the computer, flexible flat cable is connected to the head board.

2. Effective printing width: 33.8 mm (1.33 inches).

3. Color channel: 4 channels/4 colors.

4. Number of nozzle holes: 1600.

5. Print head resolution: 300npi/1 column 600npi/2 columns.



6. Nozzle features: Can print water based, thermal transfer, coating , eco-solvent, UV and other inks.



7. Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection.



8. RIP-software: Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc.

9. Function support: Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, automatic reset, disconnection and continuous printing, paper out detection, ink stack self-check, etc.





Application scenario:



Photo printer, UV flatbed printer, white ink scald transfer printer, Wall printer, ground printer, etc.



UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.



The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.



Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 0

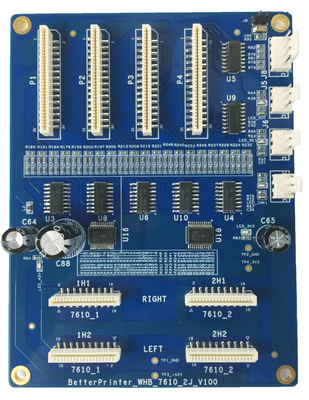

Product Image:

Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 1

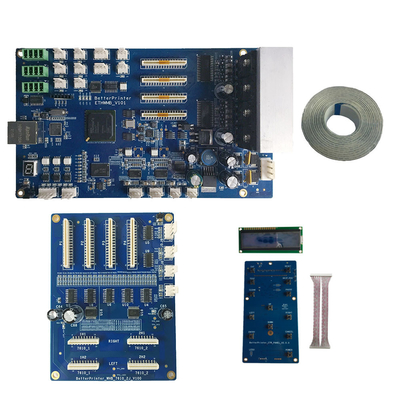

Printer inkjet board 7610 suit





Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 2Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 3

Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 4Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 5

Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 6







Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 7Print 7610 Double Head Board For ECO Solvent Printer Network Flat Cable Version Board For UV Dtf Printer 8





Note:


1. If you need a detailed list of the accessories included in the kit, please contact us.ALL the pictures are taken by real stock Card board sample.

2. If you have any question about the Card board,pls contact us when you free,we will answer you as soon as possible.



3. After you pay, the order will be shipped within 3 to 10 days.

4. Before buying, please confirm whether the product model is what you want, if you have any questions about the product, welcome to ask.





Packing details:



Inner Package : bubble plastic bag.



Outter package : Carton.
