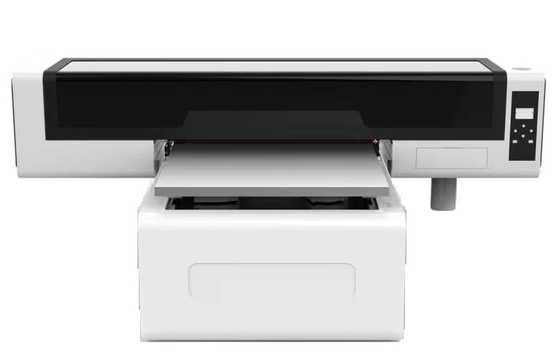

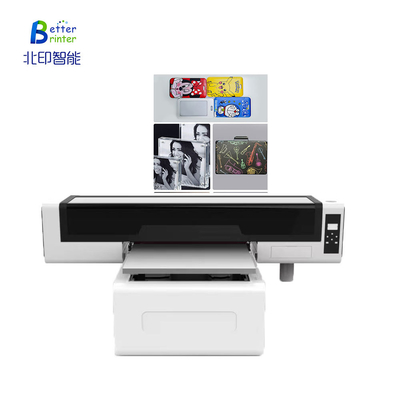

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing

Place of Origin China
Brand Name Better Printer
Model Number Flatbed Printer TC-3H609
Minimum Order Quantity 1PCS
Packaging Details Wooden frame
Delivery Time 3-10 work days
Payment Terms TT/USD account

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UV Printer Print Speed 4 Pass 3m2/H
Inks Color CMYK+W+V+G Printhead Type Epson 13200/F1080/TX800/Ricoh G5i
Max Print Size 900mm * 600mm Printer Size L/W/H 1686*1482*780mm
G.W&N.W 185kg&150kg RIP Software Maintop/Riprint/Photoprint
Highlight

Small 6090 UV Flatbed Printer

,

Thermos Bottle UV Flatbed Printer

,

Mug Tile 6090 UV Printer

Leave a Message
Product Description

Small 6090 UV Flatbed Printer for Phone Case Mug Tile thermos bottle print T-shirt Printing - China UV Printer


Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 0



Flat panel printing system supports color white out, color white out of different, white ink bottom, cover, gloss, etc., back printing, anti-interference and stability is very good. It is a kind of plate free panchromatic digital printing which is not limited by any material. It does not contact with the surface of the material. It broadens the range of printing and can print hundreds of materials such as glass, ceramic tile, metal, leather, wood and plastic. Mainly used in advertising industry, building materials industry, electronic products industry, leather industry, wood industry, crafts industry, stationery industry, toy industry and so on.



Technical Parameters



Printer Model TC-2H609 TC-3H609 TC-4H609
Printhead Quantity 2 3 4
Printhead Type Epson 13200/F1080/TX800/Ricoh G5i
TX800 & F1080
Print Speed
4 pass 3/H 5/H 7/H
6 pass 2m²/H 3.5/H 4/H
8 pass 1.5/H 2/H 3/H
I3200-U1
Print Speed
4 pass 4/H 6/H 8/H
6 pass 3/H 5/H 6/H
8 pass 2/H 3/H 4/H
Ricoh G5i
Print Speed
4 pass 4/H 5/H 6/H
6 pass 3/H 4/H 5/H
8 pass 2/H 3/H 4/H




Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 1



 Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 2

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 3

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 4

Technical Parameters



Computer CPU:I5/I7系列RAM(内存):8GB HD(硬盘):2TB
SSD:128G more For system disk only系统盘用
System(操作系统):Win7/Win10 64Bit
Accuracy/Mate.Thick. 720 * 2880DPI/ 0-18mm
Inks Color CMYK+W+V+G(胶水)可选Optional
Image Format TIFF/JPG/JPEG/EPS/PDF/PNG
RIP software Maintop/Riprint/Photoprint
Interface USB2.0/3.0
Max Print Size 900mm * 600mm
Power and Voltage AC100-240V/1.2KW 50/60Hz
Temperature&Humidity 20-30°C/60-70%
Printer Size L/W/H 1686*1482*780mm
Wood Pack Size L/W/H 1750*1550*850mm
G.W&N.W 185kg&150kg
Other optional Optional visual orientatiocylinder
Print holder,leadshine motor









Characteristic:
1. It is not limited by plate making, film and color register, and is easy to operate and maintain, with stable performance.
2. UV ink is an environment-friendly green ink, which has the characteristics of rapid curing, no volatile organic solvent VOC, less pollution, high efficiency, low energy consumption, etc.
3. Simple operating procedures and high-quality dyeing and coloring create a low-cost production structure, and color performance, waterproof, sunscreen, wear-resistant.





Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 5

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 6

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 7



Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 8

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 9

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 10

Small 6090 UV Flatbed Printer For Phone Case Mug Tile Thermos Bottle Print T-Shirt Printing 11
