4720 Inkjet Printer Control System Low Cost W5113 Single Head For Floor Printer
| Brand Name | BetterPrinter |
|---|---|
| Model Number | U2EWMB_V104，WHB_W5113_1J_V105，4720 |
| Minimum Order Quantity | 20 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Changsha, China | Main Board Specifications | 182mm*112mm |
|---|---|---|---|
| Head Board Specifications | 94mm*123mm | Colour | Blue |
| Application Nozzle Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | Board Type | Inkjet Printer Single Head Control Board |
| Type | Kit Board | Model | 4720 Printhead |
| High Light | 4720 Control Board Kit Floor Printer,4720 W5113 Control Board Kit,Single Head 4720 Inkjet Printer System |
||
Product Description
4720 Inkjet Printer System Low Cost W5113 Single Head For Floor Printer
USB2.0 flat wire inkjet printing control system, application nozzle model: 4720/W5113, using flat line connection, cost-effective.
Provides various nozzle arrangements and spot color settings, such as staggered (arranged) full color, white color at the same time, side by side, side by side with 8 colors (kcmy+4 spot colors), etc.
| Name | Flat wire 4720 Inkjet Printer Board | Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Nozzle model | Epson 4720/W5113 | Board support | Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head |
| Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. | Trolley speed | 1.2M/S |
| Data interface | USB2.0 cable to connect to the computer, flat cable | Effective print width of print head | 1.33 inches |
| Color channel | 8 channels/8 colors | RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc. |
| Number of nozzles | 3200 | Application field | Advertising photo printing, UV coil, textile printing and other industries |
| Ignition frequency | 30KHz | warranty period | One year (12 months) |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks | transport | DHL |
Application machine:
Wall printers, ground machines, photo machines, small-format flatbed printing, etc.
The flatbed printing system can perform color photo-level printing on wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, cloth, and other textile surfaces. The product is stable, the interface is simple, the operation is convenient, and the printing speed is fast.
The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.
Floor machine: a machine that can print on floors, wooden floors, and tile floors. For example: ground painting of parking spaces, etc.
Application scenario:
Wall color printing Phone case color printing Ground painting
Product Show:

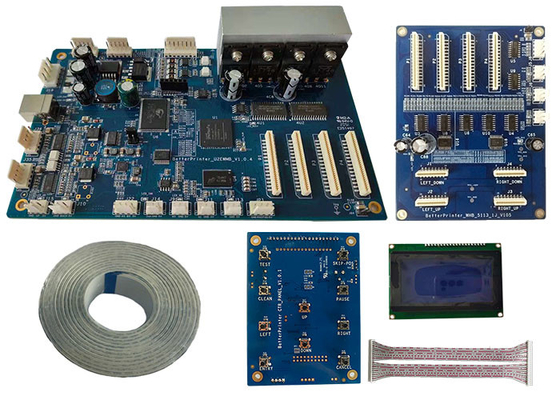

4720 Inkjet Printer Board suit

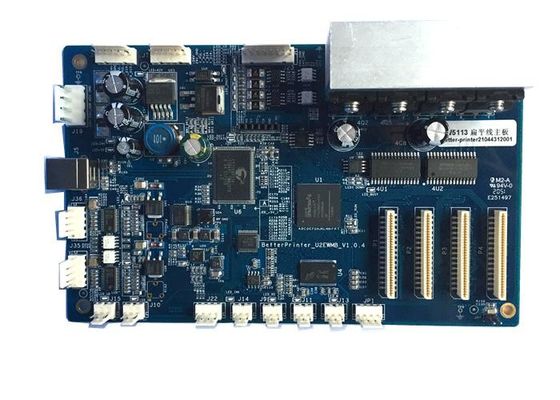

Main board

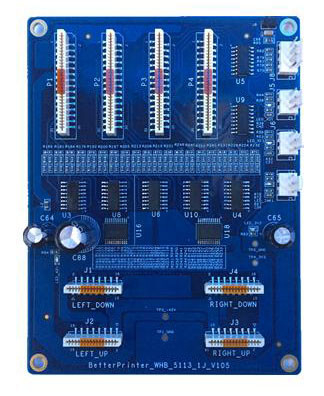

Single head board
Product use and advantages:
1. Can use for all inkjet printer that use 4720, 5113, tx800, xp600, dx5 ,dx7,7610 Single head double head .
2. We can provided the printed circuit boards software, so it is can compatable with any inkjet printer, have used on printing area so many years, very convenient and popular.
3. Many customers are using it,the performance of board is stable and efficient, It's not easy to gowrong.
4. The price is wonderful of board,and we have a huge price advantages.
5. The board is simple to operate ,don’t have Complex program, a easy installation.
6. If you want a single board,not a set,you can contact us,we will know anout the situation and offer a methods for you.
Packing details :
Inner Package : Air bubble bag, bubble film.
Outter package : Pearl cotton, special cardboard box.
⇒ ⇒ ⇒ ⇒
