5113 Printhead white ink pyrography Printer 4720 four head Inkjet Printer Control System
| Place of Origin | Made in China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | U3FMB_V101，EFMHB_V103 |
| Minimum Order Quantity | 1 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Board Specifications | 182mm*112mm | Head Board Specifications | 240mm*172mm |
|---|---|---|---|
| Colour | Blue | Application Nozzle Model | 4720/W5113,I3200,TX800,XP600,DX5,DX7 |
| Type | Kit Board | Model | 5113 Printhead |
| Board Type | Inkjet Printer Four-head Control Board | After Warranty Service | The Warranty Is For 12 Months |
| Highlight | 5113 Printhead Printer Inkjet Board,Printer Inkjet Board 5113 Printhead,5113 Printhead printer control system |
||
Product Description
Inkjet Printer 5113 Board Kit Epson 4720 Printhead Board Kit Used for pyrography hit Membrane
This program provides various nozzle arrangements and spot color settings, such as staggered (arranged) full color, white color at the same time, side by side, side by side full color, side by side white color, side by side 8 colors (kcmy+4 spot colors), etc., photo machine, Flatbed machines, belt guides, rotating circular treadmills, circular elliptical machines, corrugated paper printers, leather machines, etc. have mature solutions. Special printing actions can be customized. Four-head and below solutions provide nozzle feathering ( Uniform feathering) mode.
Quick Details:
| Color channel | 8 channels/8 colors |
| Number of nozzles | 3200 |
| Ignition frequency | 30KHz |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks |
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Board support | Single head, double head, three head, four head, six head, eight head, twelve head, sixteen head |
| Trolley speed | 1.2M/S |
| Effective print width of print head | 1.33 inches |
| Function support | Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc. |
| Data interface | 1.25G optical fiber (expandable dual optical fiber) is connected to the spray car board, and the USB3.0 cable is connected to the computer |
Application machine:
Elliptical digital machine, stamping painting machine,heat transfer machine, belt guide machine, carton machine, etc.
Oval digital printing features: simple operation, can realize automatic printing of multiple colors and patterns, comes with a drying function, the printing is not easy to damage, the printing quality is good, it can be combined freely, and the degree of automation is high. The ultimate printing effect on clothing provides an effective solution for digital application technology.
Features of the textile printing scheme: stable products and fast speed. Humanized operation interface, one-time setting, repeated printing, easy to operate. A variety of printing modes are available for customers to choose to meet different printing quality or production needs.
Application scenario:
Schoolbag hot Painting Hat hot Painting Clothing color printing
Product Show:
4720/W5113 Inkjet Printer Board suit

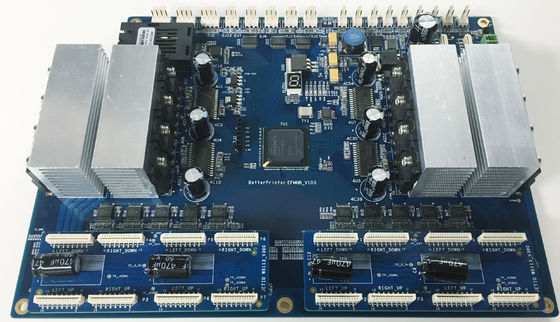

Head board

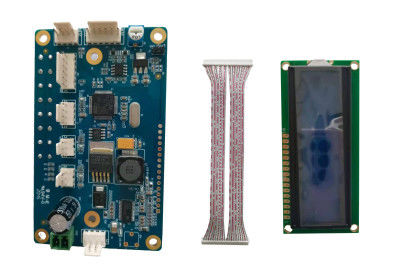

Main board
About Us:
1. All the products we sell have been inspected 100% before delivery.
2. If you have any questions before or after ordering, please feel free to contact us.
3. We have a professional after-sales technical service team to ensure that your products are of better quality.
4. If you have any questions or questions after you receive our products, please do not hesitate to contact us before giving us negative feedback. We will try our best to solve any problems for you.
Other considerations:
1. The board card is guaranteed for one year. Damages caused by operating errors and human factors are not covered by the warranty.
2. Delivered by DHL, the delivery time is about 3-10 days.
3. Transportation time depends on different countries. It is handled by a third party service and we have no control over the delivery time.
4. If the package does not arrive within the expected time, please contact us. We will help you follow up and give you a satisfactory reply.
