USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number U2FMB_V102,EFHB_V112
Minimum Order Quantity 20 sets of
Packaging Details Carton
Delivery Time 3-10 work days
Payment Terms Bank transfer/WeChat/Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 182mm*112mm Head Board Specifications 198mm*132mm
Application Nozzle Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 Colour Blue
Board Type Inkjet Printer Double Head Control Board Model TX800 Printhead
Use For Industrial Inkjet Printer After Warranty Service The Warranty Is For 12 Months
High Light

TX800 Inkjet Printer System

,

USB2.0 Inkjet Printer System

,

TX800 Printer Inkjet Board

Leave a Message
Product Description

USB2.0 interface TX800 double head inkjet printer system,for tape guide printer





Quick Details:



This program provides various nozzle arrangements and spot color settings, such as staggered (arranged) full color, white color at the same time, side by side, side by side full color, side by side white color, side by side 8 colors (kcmy + 4 spot colors), etc., special printing actions Personalized customization is available, and the feathering mode provides inter-jet feathering (uniform feathering) mode.



USB2.0 optical fiber inkjet printing control system, application nozzle model: TX800

Data interface: The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer

Color channel: 6 channels/6 colors

Nozzle features: Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks

Nozzle protection: Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection

Board support: Single head, double head, three head, four head, eight head, sixteen head, thirty-two head

RIP-software: Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc

Function support: Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc





Application machine:



Photo machine, UV flatbed machine, white ink scald transfer machine, double-station direct printing machine, etc.



The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.



UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.



USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 0USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 1USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 2





Application scenario:





USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 3USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 4USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 5



Clothing color printing                                 Glass printing                                        PCB legend printing







Product pictures:

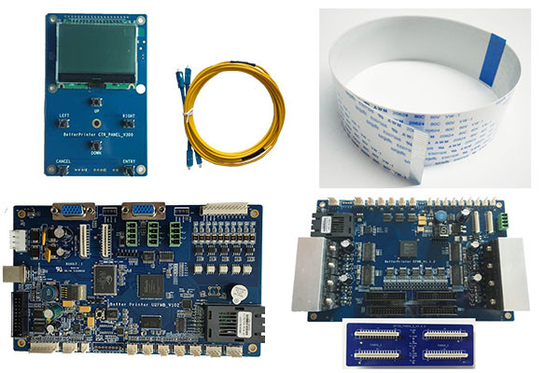

Inkjet Printher Control Board TX800 suite



USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 6

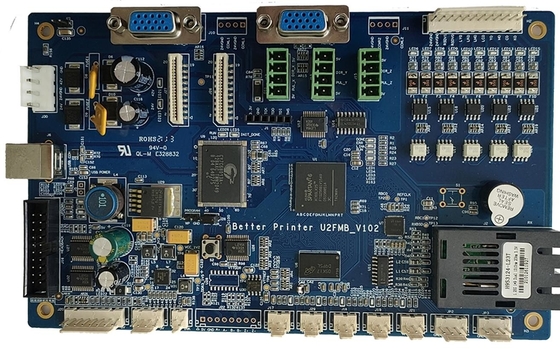

Main board



USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 7

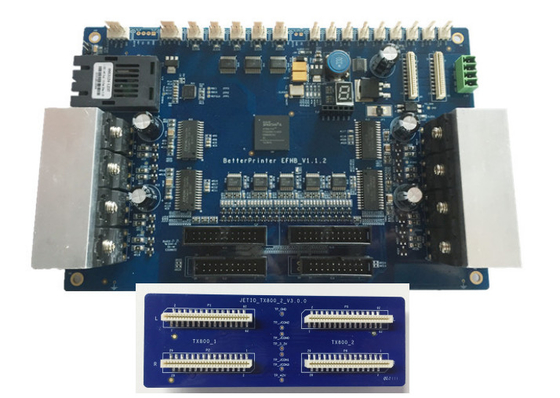

Head board



USB2.0 Interface TX800 Double Head Inkjet Printer System For Tape Guide Printer 8









About us:



We provide ink-jet board for advertising photo printing, UV board roll, textile printing and other industries.



Our products cover all kinds of industrial inkjet printer circuit boards and technical services.





Notes:



1. The warranty period of the board card is 1 year, and the damage of the board card caused by operation error and human factors is not covered by the warranty.



2,After acceptance by customers, if there is any doubt, they should notify our company within 3 days, otherwise it is regarded as qualified for acceptance.



3. Party B shall cooperate with Party A in technical guidance and product maintenance. Party A shall keep confidential product information, materials and manuals of Party B, and both parties shall be obligated to keep confidential business cooperation information of both parties.



4. If the Board have after-sales problems, the return freight shall be borne by the customer.





Packaging and logistics:


Inner Package : bubble plastic bag.


Outter package : Carton.
