TX800 Print Board Set Crystal Label Printer Mainboard For UV Flat Panel White Ink Pyrography Printer

Place of Origin Changsha, China
Brand Name BetterPrinter
Model Number TX800 printer control board
Minimum Order Quantity 10 sets of
Packaging Details carton
Delivery Time 3-10 work days
Payment Terms Bank transfer/WeChat/Alipay

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Board Specifications 182mm*112mm Head Board Specifications 94mm*123mm
Application Nozzle Model 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 Board Type Inkjet Printer Double Head Control Board
Technical Support Professional Technical Support Quality Control 100% Pre-Tested Well Before Shipping
Advantage Fast Delivery, Advanced Quality New 100% Original 100% Brand New
High Light

TX800 Printer Board Set

,

UV Flat Panel Printer Mainboard

,

White Ink Pyrography Printer Mainboard

Leave a Message
Product Description

TX800 print Board Set Mainboard crystal label Printer Parts For UV flat panel White ink pyrography Printer





Quick Details:



USB2.0 flat cable inkjet printing control system, nozzle model: TX800, using flat cable connection with high cost performance. There are mature solutions for printer inkjet printing, UV flatbed printing, textile thermal transfer printing, white ink heat transfer printing, crystal label printing, etc.



Name Flat wire inkjrt Printer board Color channel 6 channels/6 colors
Nozzle model TX800 Number of nozzles 1080
Data interface USB2.0 cable to connect to the computer, flat cable Ignition frequency 30KHz
Nozzle features Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks Nozzle protection Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection
Trolley speed 1.2M/S Effective print width of print head 1 inches
Board support Single head, double head, three head, four head, eight head, sixteen head, thirty-two head RIP-software Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc.






Application scenario:



Wall printers, ground machines, photo machines, small-format flatbed printing, etc.



White ink hot stamping printing is suitable for personalized customization. Printing powder spreading powder shaking drying can be completed, intelligent integration, and the transfer effect is more washable and tear resistant. It has the characteristics of strong visual three dimensional feeling, good hand feeling, diverse colors, environmental protection of materials, rich three dimensional effect and so on. The product is stable, the interface is simple, the operation is convenient and the printing speed is fast.


UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.





TX800 Print Board Set Crystal Label Printer Mainboard For UV Flat Panel White Ink Pyrography Printer 0



   ​



Product Image:

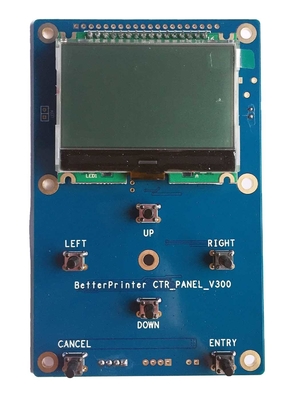

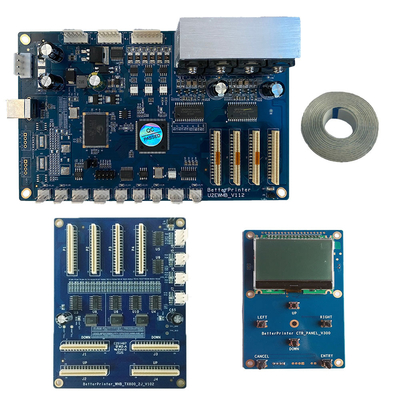

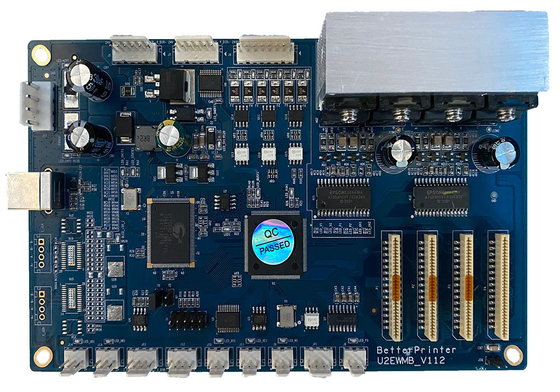

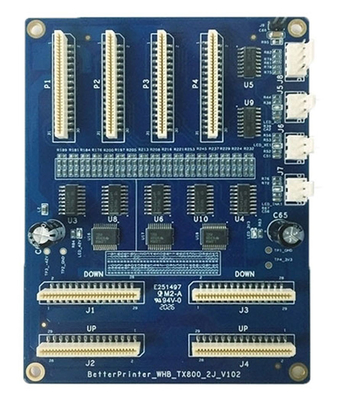

TX800 Inkjet Printer Board suit
