TX800 Double Head Inkjet Board DTF Printer Control Board UV Flatbed Printer
| Place of Origin | Changsha, China |
|---|---|
| Brand Name | BetterPrinter |
| Model Number | TX800 dual head printer board |
| Minimum Order Quantity | 10 sets of |
| Packaging Details | Carton |
| Delivery Time | 3-10 work days |
| Payment Terms | Bank transfer / WeChat / Alipay |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MAIN BOARD SPECIFICATIONS | 182mm*112mm | HEAD BOARD SPECIFICATIONS | 94mm*123mm |
|---|---|---|---|
| Applicable Model | 4720,W5113,I3200,TX800,XP600,DX5,DX7,7610 | Nozzle Model | TX800 Printhead |
| Type | Kit Board | Use For | Industrial Inkjet Printer |
| Feature | Original And Brand New | Technical Support | Professional Technical Support |
| Highlight | DTF Printer Control Board,TX800 Inkjet Printer Board,Tx800 Dual Head Printer Board |
||
Product Description
Printer Board TX800 Double Head Inkjet Board DTF printer Control Board UV Flatbed Printer inkjet printer system
Quick Details:
| Name | Flat wire inkjrt Printer board | Color channel | 6 channels/6 colors |
| Nozzle model | TX800 | Number of nozzles | 1080 |
| Data interface | USB2.0 cable to connect to the computer, flat cable | Ignition frequency | 30KHz |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks | Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection |
| Trolley speed | 1.2M/S | Effective print width of print head | 1 inches |
| Board support | Single head, double head, three head, four head, eight head, sixteen head, thirty-two head | RIP-software | Mainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc. |
Quick Informations tips:
1. All the pictures are taken by actural sample.
2. If you can't find the printer spare parts you want in our store,please contact us or leaving messages to us,we willtry our best to help you.
3. Any questions,please feel free to contact us,we will reply as soon as possible,thank you!
Application scenario:
Wall printers, ground machines, photo machines, small-format flatbed printing, etc.
The flatbed printing system can perform color photo-level printing on wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, cloth, and other textile surfaces. The product is stable, the interface is simple, the operation is convenient, and the printing speed is fast.
Floor machine: a machine that can print on floors, wooden floors, and tile floors. For example: ground painting of parking spaces, etc.
The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.

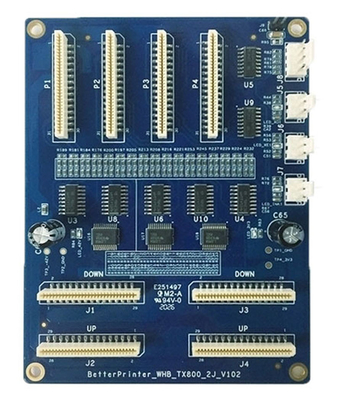

Product Image:
Our service:
1. Our production range covers the circuit boards of all types of industrial printers, which are used in photo printing, UV flatbed, textile printing and other industries.
2. As a machine using TX800 print head, we recommend the flat wire TX800 board as the core of the machine to reduce damage to the machine and reduce production costs.
3. If you have any questions about the goods (model, what model used) and the declared value of the order in the delivery receipt , please leave a message after payment to avoid delivery errors. If not, we will default The order is shipped.
